◆Foot valve fine structure can be removed as a whole, operation stably and reliably,  and easy maintenance ;

◆Mounting head is made of Alloy steel, Lifetime Warranty;

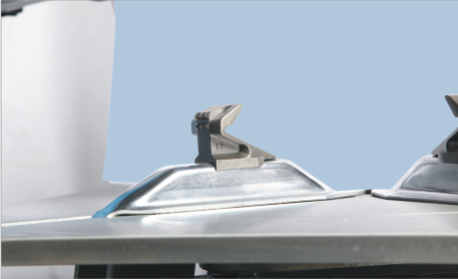

◆Grip jaw is made of Alloy steel , Lifetime Warranty;

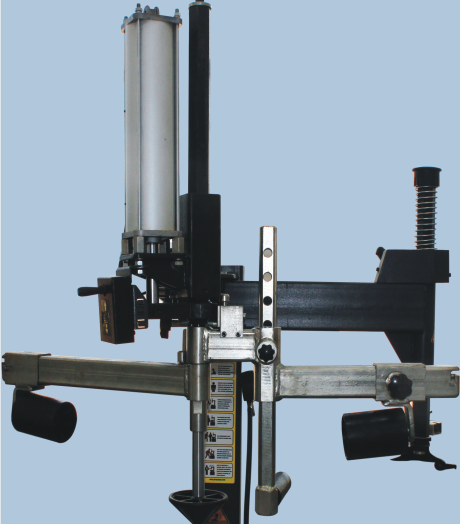

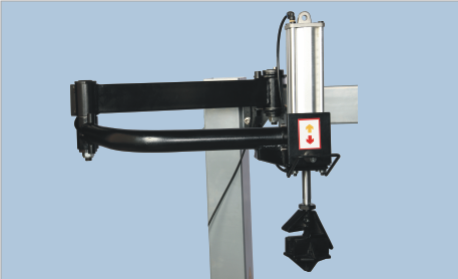

◆Simple helping arm, save the operator operating time;

◆Adjustable Grip Jaw(option),±2”can be adjusted on the basic

 clamping size.


Technical Specification

 Motor power    1.1kw/0.75kw/0.55kw
 Power supply  110V/220V/240V/380V/415V
 Max. wheel diameter  44"/1120mm
 Max. wheel width    14"/360mm
 Outside clamping    10"-21"
 Inside clamping         12"-24"
 Air supply  8-10bar
 Rotation speed        6rpm
 Bead breaker force  2500Kg
 Noise level  <70dB
 Weight     298Kg
 Package size    1100*950*950mm
 24 units can be loaded into one 20”container

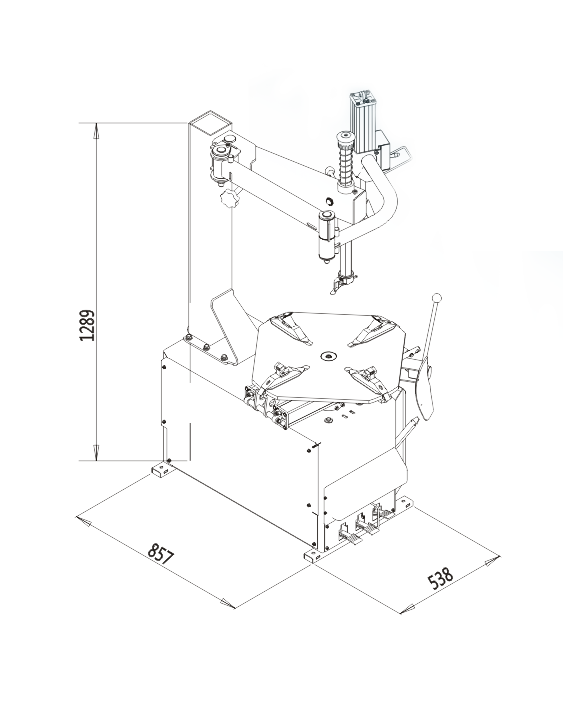

  Packing size and line drawings
