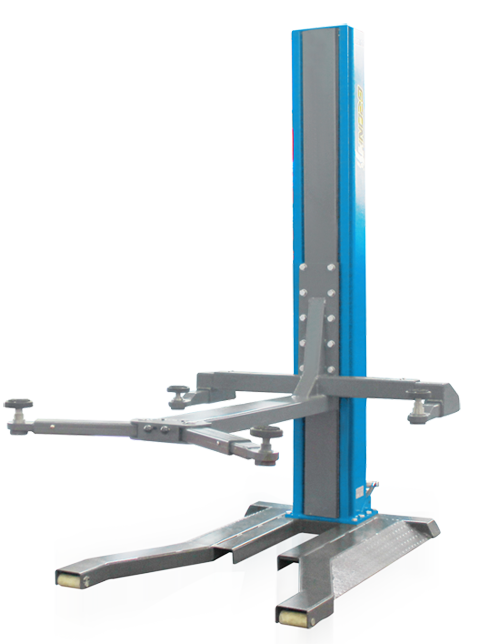

GH25 MOBILE SINGLE POST LIFT

Single post lift needs less space than two post lift or four post lift in your garage, is ideal choice for basic maintenance, tire changing, etc. meanwhile one post design makes door open easily.  The mobile one is convenient to move in garage, covers most of cars and SUVs with capacity of 2.5T. Space saving single post design can be positioned either to give complete free access to the drivers door. Single hydraulic cylinder, Heavy-duty leaf chain, Free standing design, Durable construction for maximum stability, Mechanical safety device against the accidental lowering, Adjustable support arm.



·

Technical Specification

 Lifting capacity  2500kg
 Max.Lifting Height  2000mm
 Minimum height  110mm
 Lifting time  40s
 Overall height  2730mm
 Overall width   1600mm
 Overall Length  2200mm
 Motor Power  2.2kw
 Power supply  220V/240/380V/415V
 Weigh  650kg
  Details

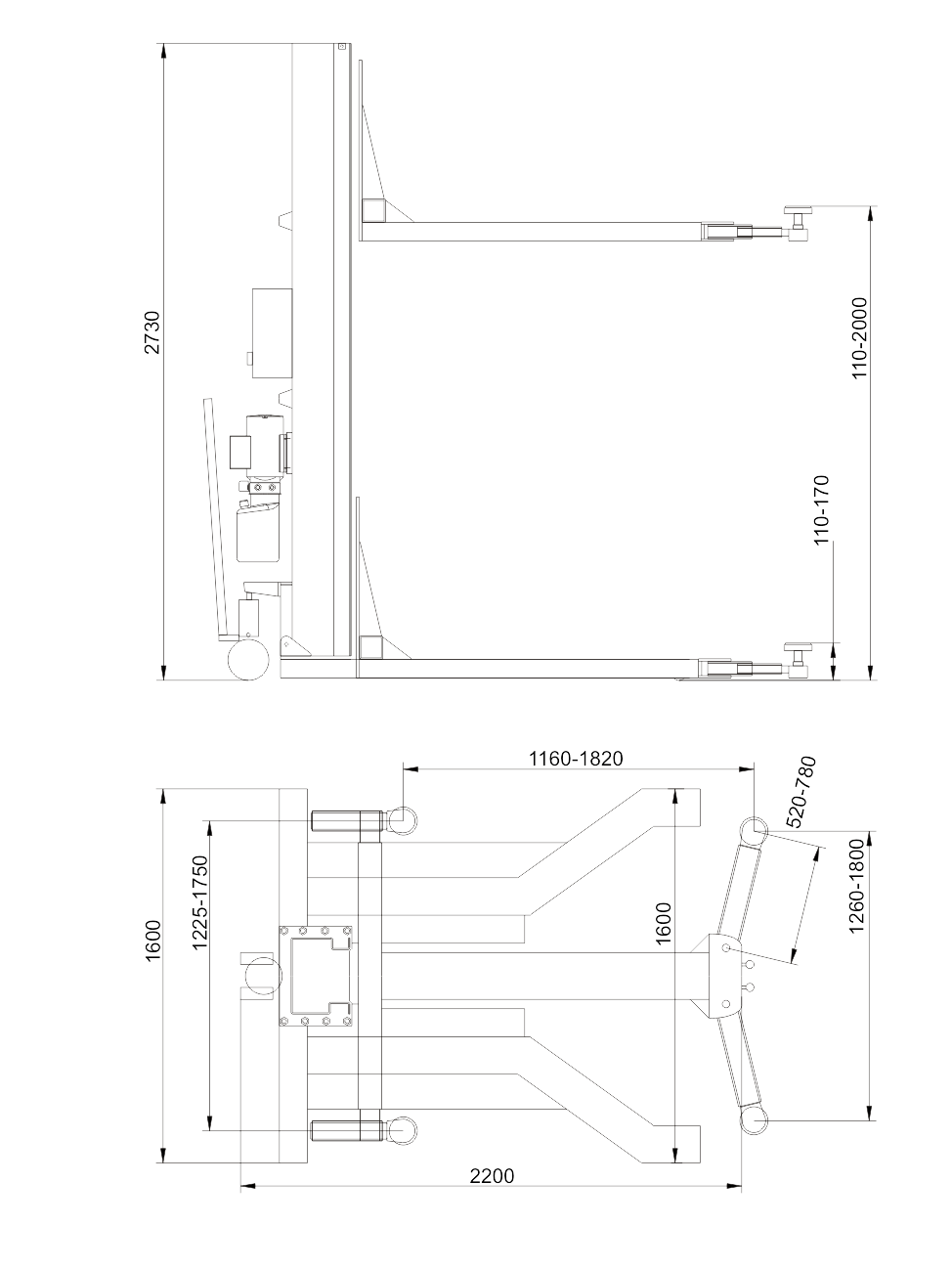

  Packing size and line drawings

  Optional Parts
