GHL32CA/40CA ASYMMETRIC COLUMN CLEAR FLOOR LIFT

◆Clear floor design, can make the operator in the vehicle under working more easily.

◆By two cylinder, plate and wire rope chain balance system, lifting and loweringsmooth.

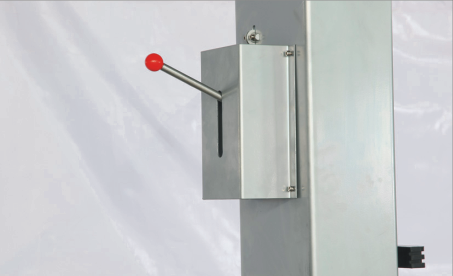

◆Hydraulic power unit configuration throttling device, can always adjust the rate of decline.Manual mechanical lock release from two sides.

◆24V height limit switch.

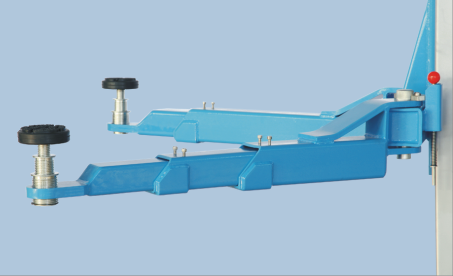

◆Asymmetric arm design,leaves more space for the cars。

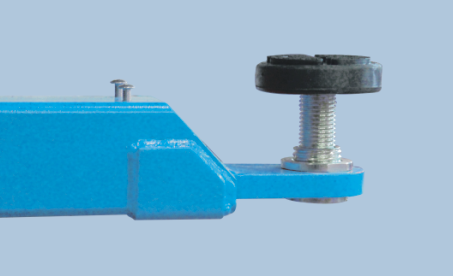

◆Rubber pad with spiral adjust the height and in stages adjust the height,

◆Rubber pad door-opening protection.

◆Feet-protection safety guardrails(optional).

◆It has adopted 115% dynamic loading capacity and 150% staic loading capacity tested.

◆CE certificated.



·

Technical Specification

Lifting capacity 3200KG/4000KG
Lifting height 1900 mm
Minimum height 95mm
Lifting time 40-45s  /50s
Overall height 3726mm
Overall width 3420mm
Width between columns 2820mm
Motor power 2.2kw
Power supply 220V/380V/415V
Weight 645kg/689kg
Packing size 3750*530*770mm
12 units can be loaded into one 20”container
  Details

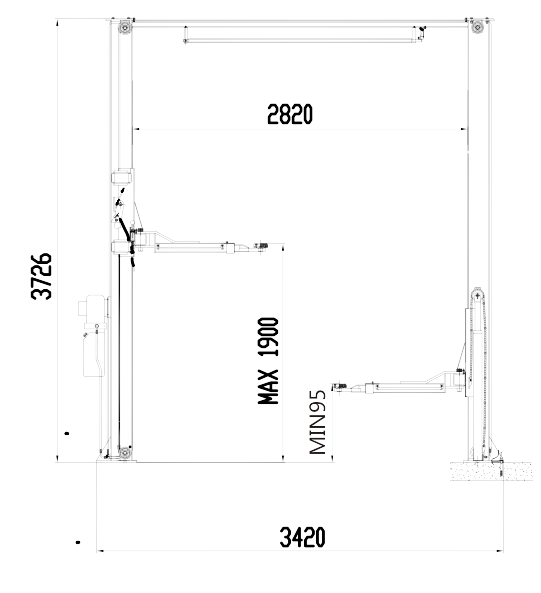

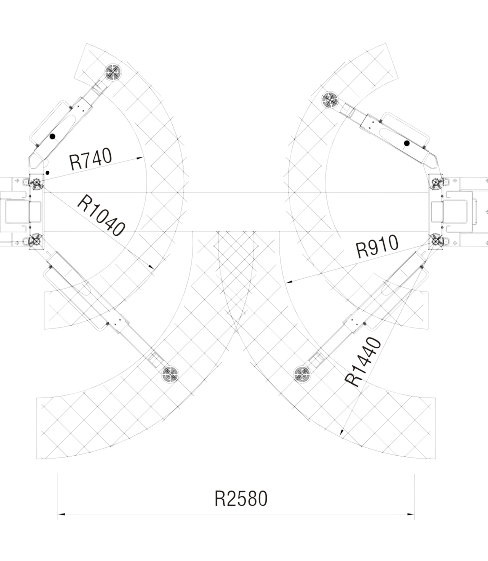

  Packing size and line drawings

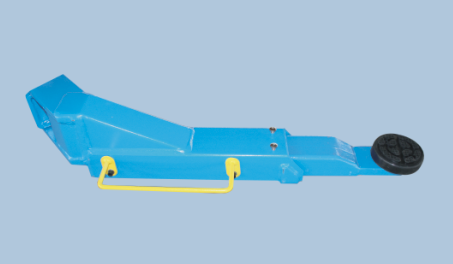

  Optional Parts
