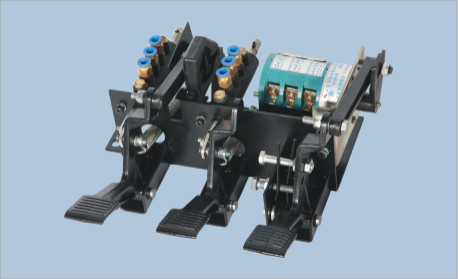

◆Foot valve fine structure can be removed as a whole, operation stably and reliably,  and easy maintenance ;

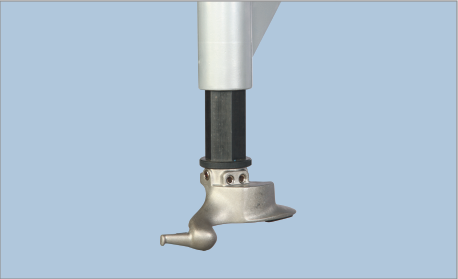

◆Mounting head is made of Alloy steel, Lifetime Warranty;

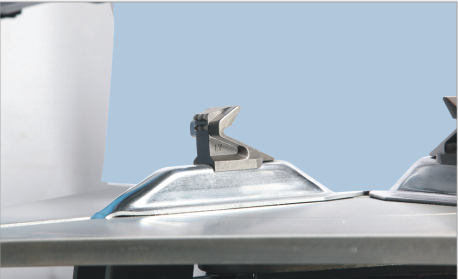

◆Grip jaw is made of Alloy steel , Lifetime Warranty;

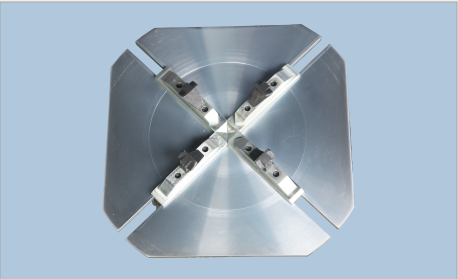

◆Adjustable Grip Jaw(option),±2”can be adjusted on the basic clamping size.


Technical Specification

 Motor power    1.1kw/0.75kw/0.55kw
 Power supply  110V/220V/240V/380V/415V
 Max. wheel diameter  38"(960mm)
 Max. wheel width    11"(280mm)
 Outside clamping    10"-18"
 Inside clamping         12"-21"
 Air supply  8-10bar
 Rotation speed        6rpm
 Bead breaker force  2500Kg
 Noise level  <70dB
 Weight     229Kg
 Package size    1100*950*950mm
 36 units can be loaded into one 20”container

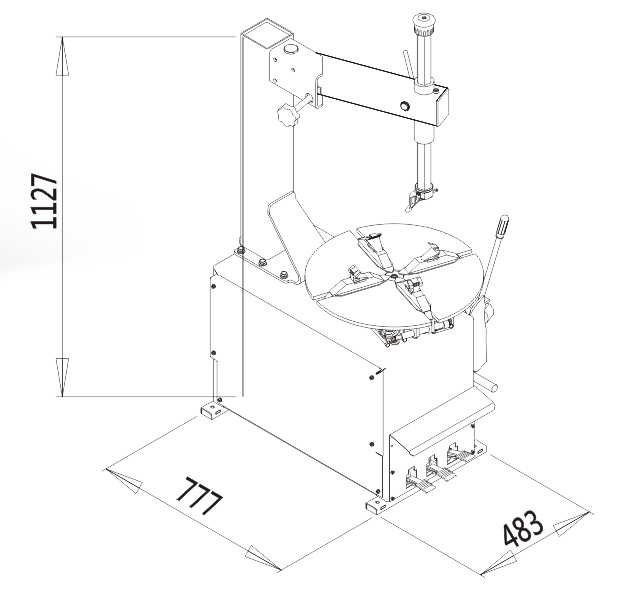

  Packing size and line drawings

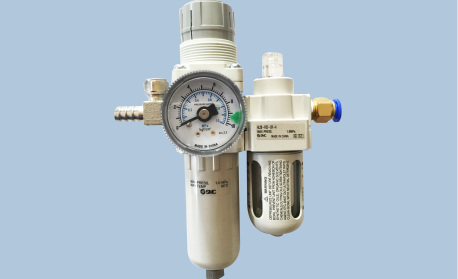

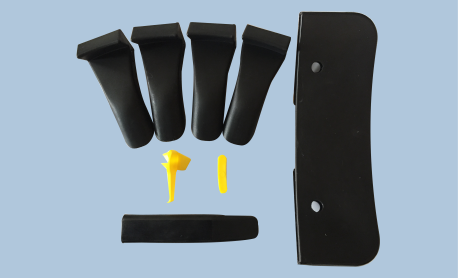

  Optional Parts
