GHL32FB/40FB FLOOR PLATE TWO POST LIFT


◆Floor plate design is ideal choice for low ceiling shop

◆By two cylinder, plate and wire rope chain balance system, lifting off and landing smooth.

◆Hydraulic power unit configuration throttling device, can always adjust the rate of decline.

◆Asymmetric column allows wider drive through clearance.

◆Manual lock release from one sides, more convenient to use.

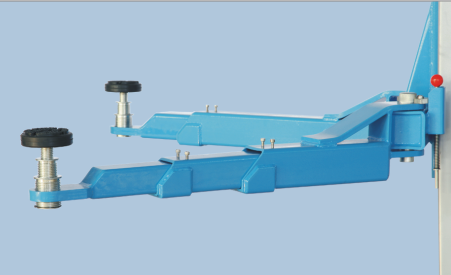

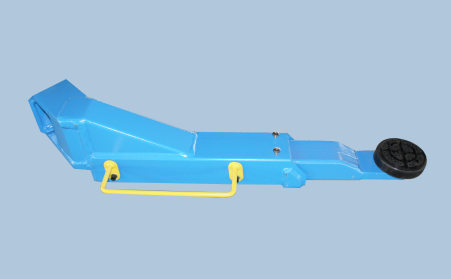

◆Take three stages arm design, a larger adjustment range, for different vehicle chassis.

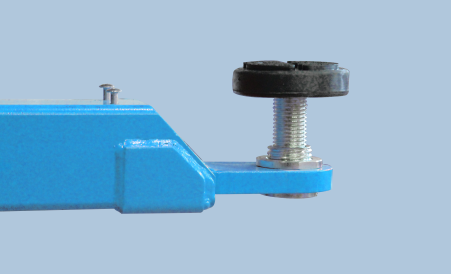

◆Rubber support pad with spiral adjust the height and in stages adjust the height, optional.

◆With 24V limit switch.

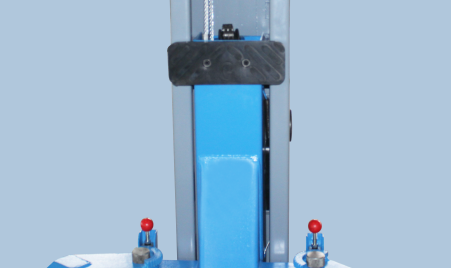

◆Rubber pad door-opening protection.

◆With guard rail, toe protection.

◆Have adopted115% dynamic and 150% static loading tested.

◆CE approved.


·

Technical Specification

 Lifting capacity  3200KG /4000KG
 Lifting height  1800mm
 Minimum height  110mm
 Lifting time  45s /50s
 Overall height  2830mm
 Overall width   3420mm
 Width between columns  2820mm
 Motor power  2.2kw
 Power supply  220V/240/380V/415V
 Weigh  636kg /636kg
 Packing size  2900*530*770mm
 24 units can be loaded into one 20”container
  Details

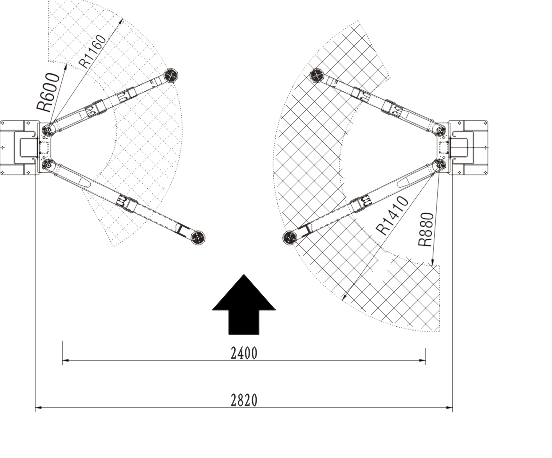

  Packing size and line drawings
