GHL32Q/40Q FLOOR PLATE TWO POST LIFT

◆Floor plate design is ideal choice for low ceiling shop

◆By two cylinder, plate and wire rope chain balance system, lifting and loweringsmooth.

◆Hydraulic power unit configuration throttling device, can always adjust the rate of decline.Manual mechanical lock release from two sides.

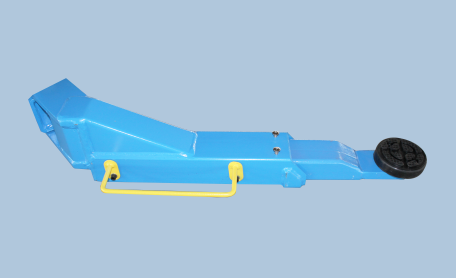

◆24V height limit switch. Asymmetric arm design,leaves more space for the cars。

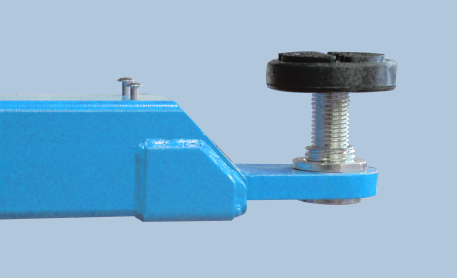

◆Rubber pad with spiral adjust the height and in stages adjust the height,

◆Rubber pad door-opening protection.

◆Feet-protection safety guardrails.

◆It has adopted 115% dynamic loading capacity and 150% staic loading capacity tested.

◆CE certificated.



·

Technical Specification

Lifting capacity 3200KG /4000KG
Lifting height 1900mm
Minimum height 110mm
Lifting time 40-45s /50s
Overall height 2830mm
Overall width 3420mm
Width between columns 2820mm
Motor power 2.2kw
Power supply 220V/240/380V/415V
Weigh 592kg /636kg
Packing size 2900*530*770mm
24 units can be loaded into one 20”container
  Details

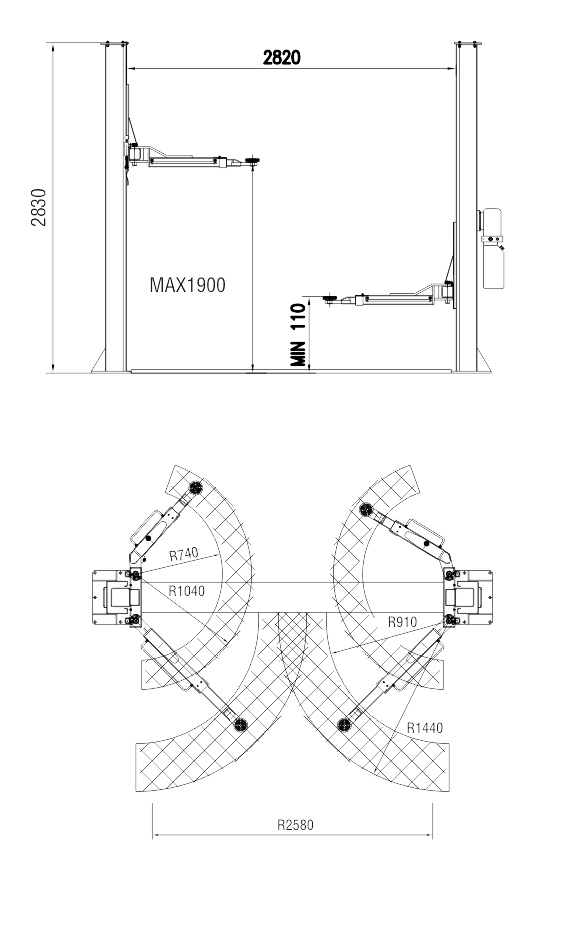

  Packing size and line drawings
