GHML30A/30B/30C MID-RISE SCISSOR LIFT-Portable scissor lift --Guanhua Liangyi Garage Equipment Co.,Ltd.

GHML30A/30B/30C MID-RISE SCISSOR LIFT

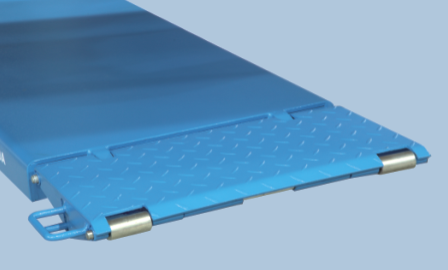

◆Low profile operation platform;

◆2-cylinders structure, synchronization system;

◆Mechanical safety lock to ensure that lift at different heights to get the absolute security;

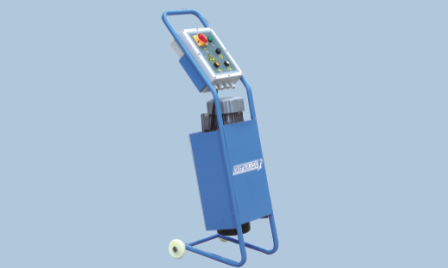

◆ Portable pump station ,pneumatic electric controlled release system. flexible and convenient.

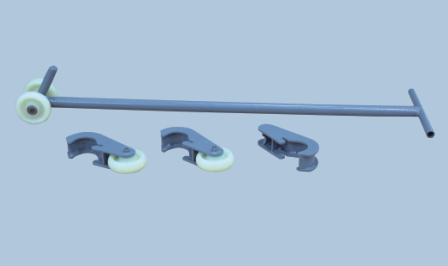

◆Optional movable devices, easy to use operator;

◆No installation required.

·	Technical Specification

Lifting capacity	3000kg/ 6600lbs
Max. lifting height	1000mm
Min. height	105mm
Lifting time	30S
Overall length for platform	1400mm
Overall width for platform	1760mm
Width between platform	700mm
Motor power	2.2KW
Power supply	220V/380V/415V
Air supply	6-8bar
Weight	627Kg
Packing size	18001540200+5204301150mm
30 units can be loaded into one 20”container

Details

Packing size and line drawings
