FLC36/45 SINGLE-POINT RELEASE 2-POST LIFT – BASE PLATE

◆ Enlarged and intensified base

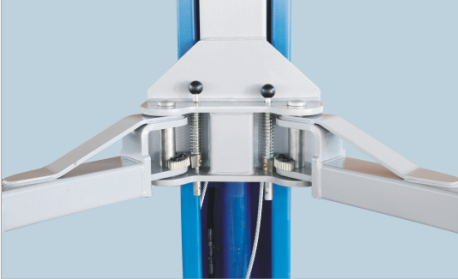

◆ Single-point lock release, convenient for user

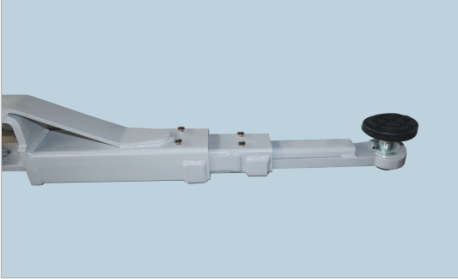

◆ 3-stage arm

◆ Aluminum-shell motor, better ventilation, longer service(cost option)

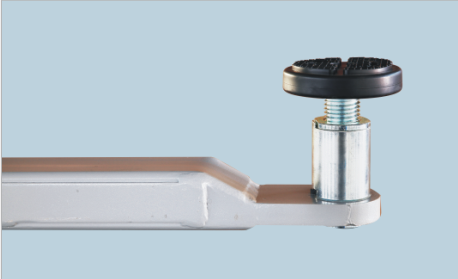

◆ Height extension + screw-up rubber pad adaptor

◆ Enhanced premium carriage

◆ Toe protector

◆ Sealed tray covering steel wire and oil hose

◆ Height limit switch





·

技术参数

 Lifting capacity  3600kg/4500kg
 Lifting height  1850mm/1850mm
 Minimum height  95mm/95mm
 Lifting time  45s/50s
 Overall height  3786mm/3786mm
 Overall width   3418mm/3418mm
 Distance between column  2820mm/2820mm
 Motor Power  2.2kw/2.2kw
 Power supply  220V/380V/415V

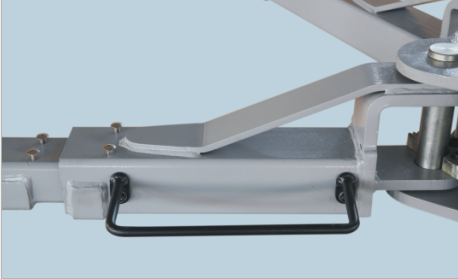

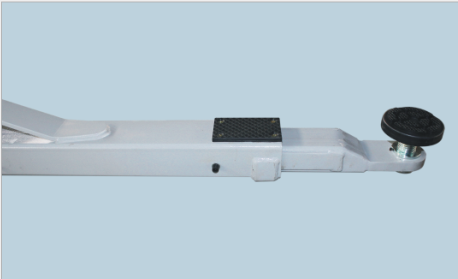

  细节图

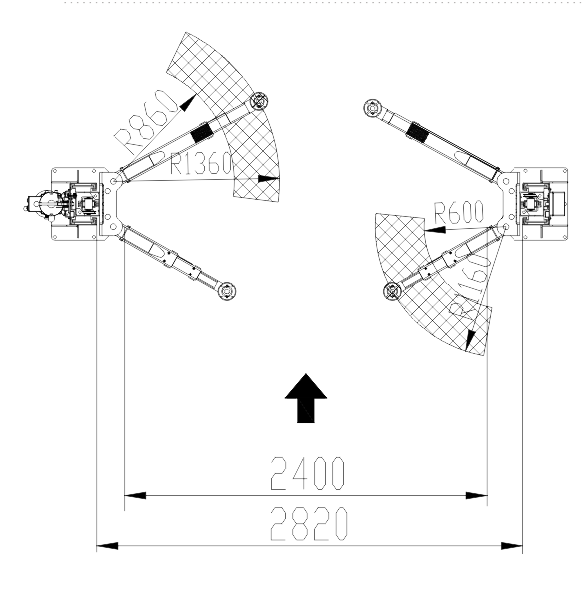

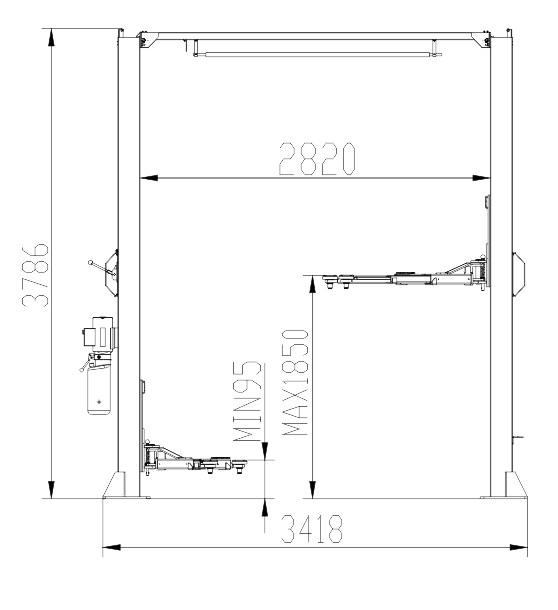

  外形尺寸及线形图
