FL36/45 SINGLE-POINT RELEASE 2-POST LIFT – BASE PLATE

◆ Enlarged and intensified base
◆ Single-point lock release, convenient for user
◆ 3-stage arm
◆ Aluminum-shell motor, better ventilation, longer service(cost option)
◆ Height extension + screw-up rubber pad adaptor
◆ Enhanced premium carriage
◆ Toe protector
◆ Sealed tray covering steel wire and oil hose


·

技术参数

 Lifting capacity  3600kg/4500kg
 Lifting height   1900mm/1900mm
 Minimum height  110mm/110mm
 Lifting time  45s/50s
 Overall height  2835 mm/2835mm
 Overall width  3420 mm/3420mm
 Distance between column    2820 mm/2820mm
 Motor power  2.2kw/2.2kw
 Power supply  220V/240/380V/415V

  细节图

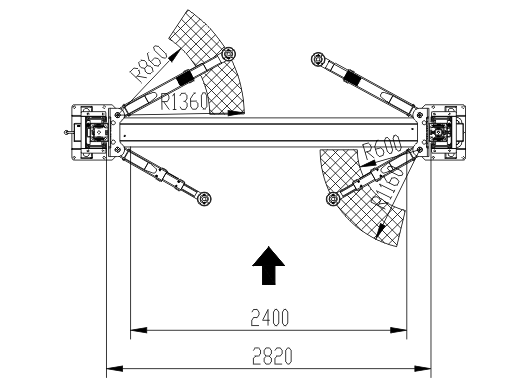

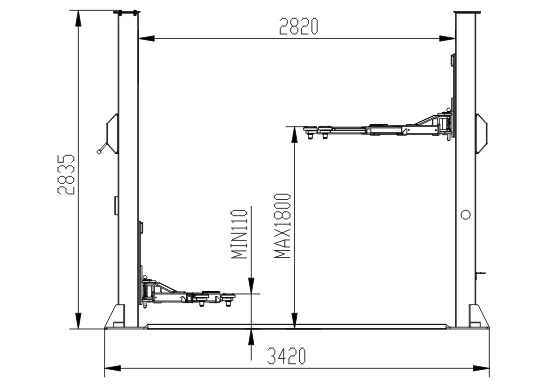

  外形尺寸及线形图
